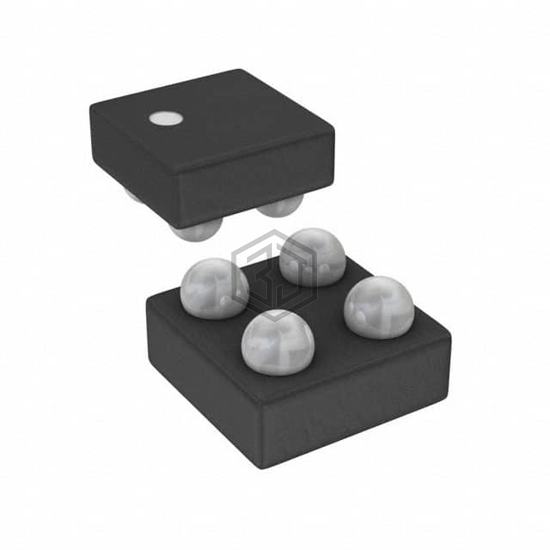

Toshiba Semiconductor and Storage
LDO REG, IOUT: 500MA VOUT:0.9V A
TCR5RG09A,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. LDO REG, IOUT: 500MA VOUT:0.9V A. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 4-XFBGA, WLCSP, current - output 500mA.
In Stock: 9,840
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 0.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 13 µA |
| Current - Supply (Max) | - |
| PSRR | 100dB ~ 59dB (1kHz ~ 1MHz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-XFBGA, WLCSP |
| Supplier Device Package | 4-WCSPF (0.65x0.65) |
Submit your RFQ for TCR5RG09A,LF and get a quote within 24 hours.
