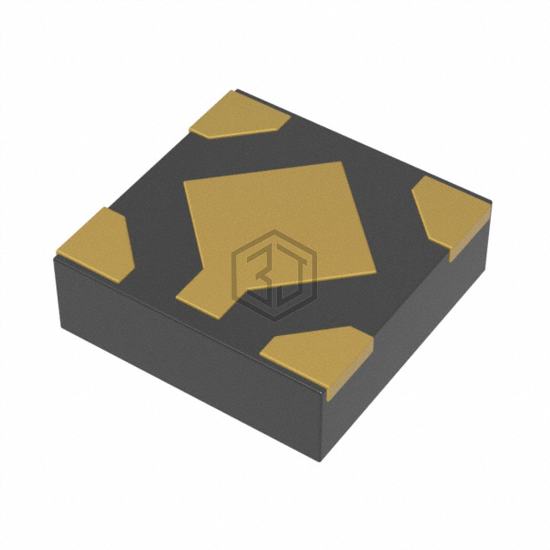

Toshiba Semiconductor and Storage
IC REG LINEAR 1.2V 500MA 5DFNB
TCR5AM12,LF is a PMIC - Voltage Regulators - Linear manufactured by Toshiba Semiconductor and Storage. IC REG LINEAR 1.2V 500MA 5DFNB. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TJ), package / case 4-XDFN Exposed Pad, current - output 500mA.
In Stock: 1,099
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.27V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 55 µA |
| Current - Supply (Max) | - |
| PSRR | 70dB ~ 40dB (1kHz ~ 10Hz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 4-XDFN Exposed Pad |
| Supplier Device Package | 5-DFNB (1.2x1.2) |
Submit your RFQ for TCR5AM12,LF and get a quote within 24 hours.
