Toshiba Semiconductor and Storage

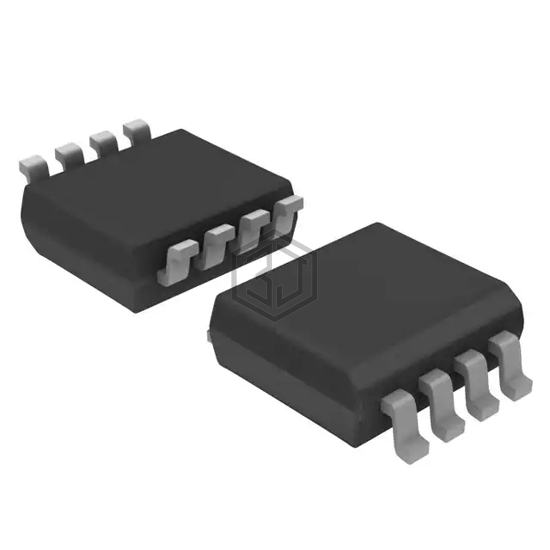

IC INVERTER SCHMITT 3CH 3-IN US8
TC7W14FK,LF is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC INVERTER SCHMITT 3CH 3-IN US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 5,522
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | Inverter |
| Number of Circuits | 3 |
| Number of Inputs | 3 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.3V ~ 1.5V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 21ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74HC14PW,118 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14TSSOP | 85% | View |
| 74HC14BQ,115 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14DHVQFN | 85% | View |
| 74HC14BQ-Q100,115 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14DHVQFN | 85% | View |
| CD74HC14M96 | Texas Instruments | IC INV SCHMITT 6CH 1-IN 14SOIC | 83% | View |
| M74HC04YTTR | STMicroelectronics | IC INVERTER 6CH 1-INP 14TSSOP | 81% | View |
| 74HC14S14-13 | Diodes Incorporated | IC INVERTER 6CH 1-INP 14SO | 79% | View |
Submit your RFQ for TC7W14FK,LF and get a quote within 24 hours.
