Toshiba Semiconductor and Storage

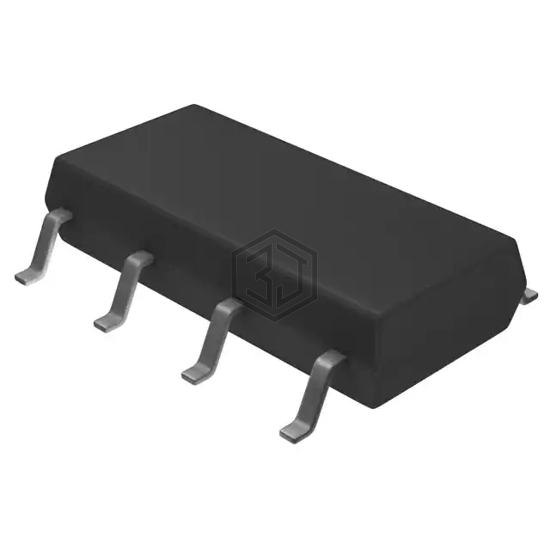

IC GATE NOR 2CH 2-INP 8-SOP
TC7W02F(TE12L) is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NOR 2CH 2-INP 8-SOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 8-SOIC (0.122", 3.10mm Width).
In Stock: 5,927
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.122", 3.10mm Width) |
TC7W02F(TE12L) is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC7W02FU(TE12L) | Toshiba Semiconductor and Storage | IC GATE NOR 2CH 2-INP SM8 | 100% | View |
| 74HC4002PW/C118 | NXP USA Inc. | IC GATE NOR 2CH 4-INP 14TSSOP | 87% | View |
| MC74HC4002FL1 | onsemi | IC GATE NOR 2CH 4-INP SOEIAJ-14 | 82% | View |
| MC74HC4002F | onsemi | IC GATE NOR 2CH 4-INP SOEIAJ-14 | 82% | View |
| MC74HC4002FEL | onsemi | IC GATE NOR 2CH 4-INP SOEIAJ-14 | 82% | View |
| SN74HCT08DB | Texas Instruments | IC GATE NOR 2CH 4-INP 14SSOP | 80% | View |
Submit your RFQ for TC7W02F(TE12L) and get a quote within 24 hours.
