Toshiba Semiconductor and Storage
IC GATE NAND 2CH 2-INP SM8

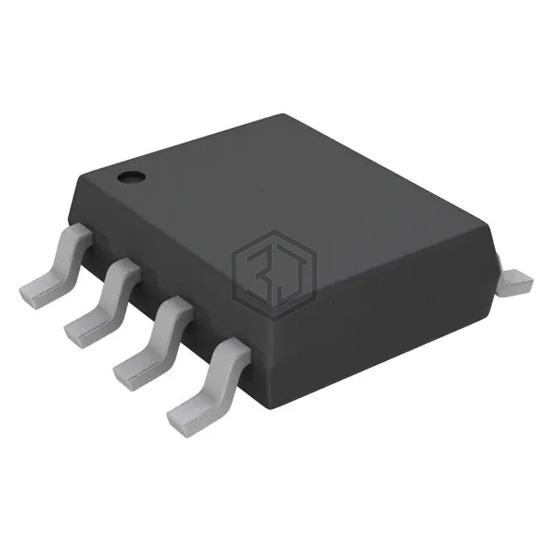

TC7W00FUTE12LF is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NAND 2CH 2-INP SM8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 8-TSSOP, 8-MSOP (0.110", 2.80mm Width).
In Stock: 9,788
| Attribute | Value |
|---|---|
| Product Status | Active |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74HC00PWT | Texas Instruments | IC GATE NAND 4CH 2-INP 14TSSOP | 89% | View |
| MC74HC132ADR2G | onsemi | IC GATE NAND 4CH 2-INP 14SOIC | 85% | View |
| MM74HC132M | onsemi | IC GATE NAND 4CH 2-INP 14SOIC | 81% | View |
| 74HC132PW,118 | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14TSSOP | 81% | View |
| SN74HC132DR | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 81% | View |
| 74HC132D/AUJ | NXP USA Inc. | IC GATE NAND SCHMIT 4CH 2IN 14SO | 81% | View |
Submit your RFQ for TC7W00FUTE12LF and get a quote within 24 hours.
