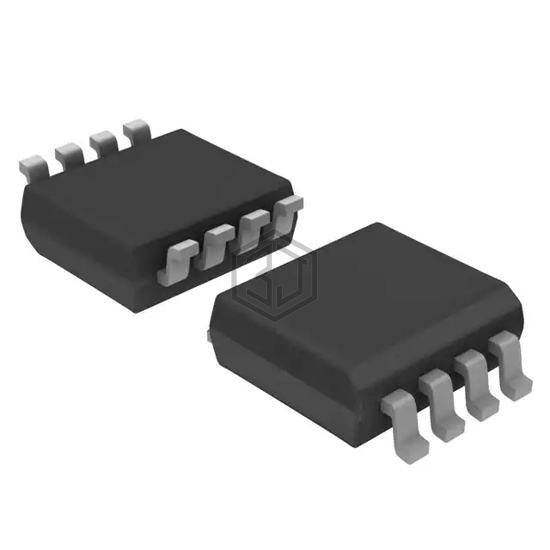

Toshiba Semiconductor and Storage
IC GATE NAND 2CH 2-INP US8
TC7W00FKTE85LF is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NAND 2CH 2-INP US8. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 6V, package / case 8-VFSOP (0.091", 2.30mm Width).
In Stock: 6,827
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 5.2mA, 5.2mA |
| Logic Level - Low | 0.5V ~ 1.8V |
| Logic Level - High | 1.5V ~ 4.2V |
| Max Propagation Delay @ V, Max CL | 13ns @ 6V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SSOP |
| Package / Case | 8-VFSOP (0.091", 2.30mm Width) |
TC7W00FKTE85LF is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TC7W00FK,LF | Toshiba Semiconductor and Storage | IC GATE NAND 2CH 2-INP US8 | 100% | View |
| 74HC20PW-Q100,118 | Nexperia USA Inc. | IC GATE NAND 2CH 4-INP 14TSSOP | 89% | View |
| SN74HC10PWR | Texas Instruments | IC GATE NAND 3CH 3-INP 14TSSOP | 87% | View |
| SN74HC10NS | Texas Instruments | IC GATE NAND 3CH 3-INP 14SOP | 87% | View |
| SN74HC20DG4 | Texas Instruments | IC GATE NAND 2CH 4-INP 14SOIC | 85% | View |
| CD74HC132M96S2300 | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 81% | View |
Submit your RFQ for TC7W00FKTE85LF and get a quote within 24 hours.
