Toshiba Semiconductor and Storage
IC INVERTER SCHMITT 1CH 1-IN FSV

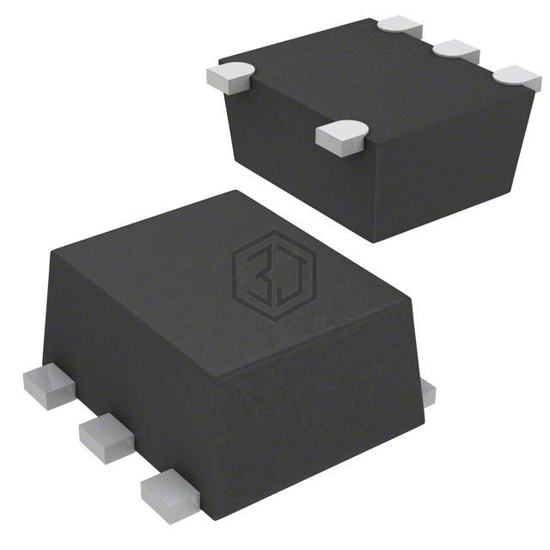

TC7SH14FSTPL3 is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC INVERTER SCHMITT 1CH 1-IN FSV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case SOT-953.
In Stock: 3,812
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 1 |
| Number of Inputs | 1 |
| Features | Schmitt Trigger |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.9V ~ 1.65V |
| Logic Level - High | 2.2V ~ 3.85V |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | fSV |
| Package / Case | SOT-953 |
TC7SH14FSTPL3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 74VHC14BQ,115 | Nexperia USA Inc. | IC INVERTER 6CH 1-INP 14DHVQFN | 90% | View |
| SN74AHC1G04DRLRG4 | Texas Instruments | IC INVERTER 1CH 1-INP SOT5 | 84% | View |
| M74VHC1GT04DFT2G | onsemi | IC INVERTER 1CH 1-INP SC88A | 82% | View |
| NLVVHC1GU04DFT2G | onsemi | IC INVERTER 1CH 1-INP SC88A | 81% | View |
| MC74VHCT14AMEL | onsemi | IC INVERTER 6CH 1-INP SOEIAJ | 79% | View |
| NL17SGU04MU1TCG | onsemi | IC REG LINEAR | 70% | View |
Submit your RFQ for TC7SH14FSTPL3 and get a quote within 24 hours.
