Toshiba Semiconductor and Storage
IC GATE NOR 1CH 2-INP FSV

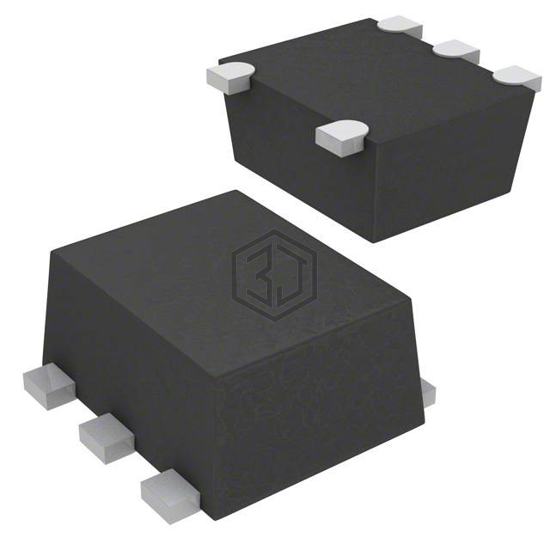

TC7SH02FSTPL3 is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NOR 1CH 2-INP FSV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case SOT-953.
In Stock: 1,294
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NOR Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | fSV |
| Package / Case | SOT-953 |
TC7SH02FSTPL3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC1G02DBVR | Texas Instruments | IC GATE NOR 1CH 2-INP SOT23-5 | 96% | View |
| MC74VHC02DR2G | onsemi | IC GATE NOR 4CH 2-INP 14SOIC | 91% | View |
| NLV74VHC02DTR2G | onsemi | IC GATE NOR 4CH 2-INP 14TSSOP | 89% | View |
| SN74AHC02DG4 | Texas Instruments | IC GATE NOR 4CH 2-INP 14SOIC | 89% | View |
| TC7SET02FU,LJ(CT | Toshiba Semiconductor and Storage | IC GATE NOR 1CH 2-INP USV | 87% | View |
| 74AHCT02PW,118 | Nexperia USA Inc. | IC GATE NOR 4CH 2-INP 14TSSOP | 82% | View |
Submit your RFQ for TC7SH02FSTPL3 and get a quote within 24 hours.
