Toshiba Semiconductor and Storage
IC GATE NAND 1CH 2-INP FSV

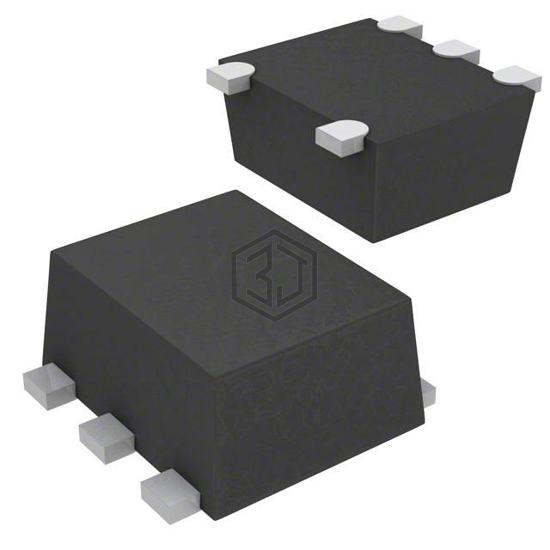

TC7SH00FSTPL3 is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC GATE NAND 1CH 2-INP FSV. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 2V ~ 5.5V, package / case SOT-953.
In Stock: 4,894
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | NAND Gate |
| Number of Circuits | 1 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Max) | 2 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.5V |
| Logic Level - High | 1.5V |
| Max Propagation Delay @ V, Max CL | 7.5ns @ 5V, 50pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | fSV |
| Package / Case | SOT-953 |
TC7SH00FSTPL3 is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| SN74AHC1G00DBVRG4 | Texas Instruments | IC GATE NAND 1CH 2-INP SOT23-5 | 96% | View |
| SN74AHC1G00DCKRE4 | Texas Instruments | IC GATE NAND 1CH 2-INP SC70-5 | 96% | View |
| SN74AHC00MDREP | Texas Instruments | IC GATE NAND 4CH 2-INP 14SOIC | 91% | View |
| 74AHC2G00DP,125 | Nexperia USA Inc. | IC GATE NAND 2CH 2-INP 8TSSOP | 86% | View |
| SN74AHCT132DBRG4 | Texas Instruments | IC GATE NAND 4CH 2-INP 14-SSOP | 82% | View |
| 74AHCT00D-Q100J | Nexperia USA Inc. | IC GATE NAND 4CH 2-INP 14SO | 81% | View |
Submit your RFQ for TC7SH00FSTPL3 and get a quote within 24 hours.
