Toshiba Semiconductor and Storage
IC INVERTER 2CH 2-INP ES6

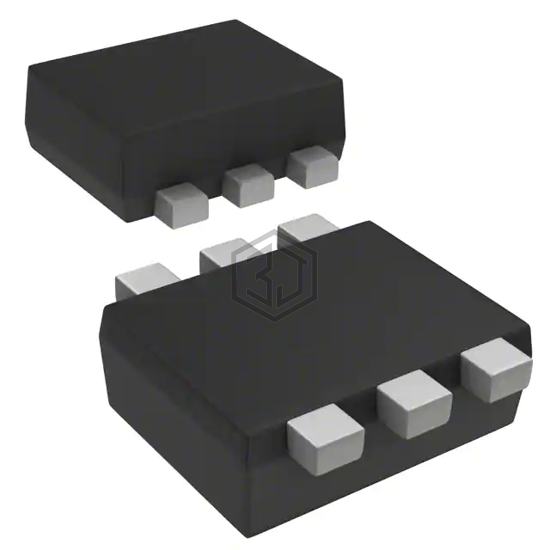

TC7PG04AFE(TE85L,F is a Logic - Gates and Inverters manufactured by Toshiba Semiconductor and Storage. IC INVERTER 2CH 2-INP ES6. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply 0.9V ~ 3.6V, package / case SOT-563, SOT-666.
In Stock: 6,603
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Logic Type | Inverter |
| Number of Circuits | 2 |
| Number of Inputs | 2 |
| Features | - |
| Voltage - Supply | 0.9V ~ 3.6V |
| Current - Quiescent (Max) | 1 µA |
| Current - Output High, Low | 8mA, 8mA |
| Logic Level - Low | 0.7V ~ 0.8V |
| Logic Level - High | 1.7V ~ 2V |
| Max Propagation Delay @ V, Max CL | 4.8ns @ 3.3V, 30pF |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | ES6 (1.6x1.6) |
| Package / Case | SOT-563, SOT-666 |
TC7PG04AFE(TE85L,F is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| NC7WZU04L6X | onsemi | IC INVERTER 2CH 2-INP 6MICROPAK | 92% | View |
| 74AHC3GU04DP-Q100H | Nexperia USA Inc. | IC INVERTER 3CH 3-INP 8TSSOP | 79% | View |
| MC74VHC1GU04DF1G-L22038 | onsemi | IC INVERTER 1CH 1-INP SC88A | 76% | View |
| SN74AHC1GU04DBVR | Texas Instruments | IC INVERTER 1CH 1-INP SOT23-5 | 75% | View |
| M74VHC1GT04DFT1G | onsemi | IC INVERTER 1CH 1-INP SC88A | 74% | View |
| 74AHCT1G14SE-7 | Diodes Incorporated | IC INVERTER 1CH 1-INP SOT353 | 66% | View |
Submit your RFQ for TC7PG04AFE(TE85L,F and get a quote within 24 hours.
