Toshiba Semiconductor and Storage
30V, 3-PHASE BRUSHLESS DC (BLDC)

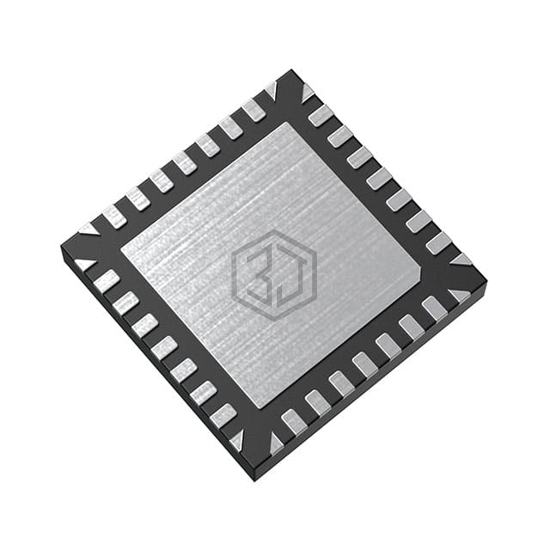

TC78B009FTG,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. 30V, 3-PHASE BRUSHLESS DC (BLDC). Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 105°C (TA), voltage - supply 5.5V ~ 27V, package / case 36-WFQFN Exposed Pad.
In Stock: 4,945
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Multiphase |
| Motor Type - AC, DC | Brushless DC (BLDC) |
| Function | Controller - Commutation, Direction Management |
| Output Configuration | Pre-Driver - High Side/Low Side |
| Interface | I²C, PWM |
| Technology | NMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 240mA |
| Voltage - Supply | 5.5V ~ 27V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 36-WFQFN Exposed Pad |
| Supplier Device Package | 36-WQFN (5x5) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| BD61241FV-GE2 | Rohm Semiconductor | IC MOTOR DRIVER 5.5V-16V 16SSOPB | 90% | View |
| TC78B027FTG,EL | Toshiba Semiconductor and Storage | 18V 3-PHASE BRUSHLESS DC (BLDC) | 88% | View |
| DRV8306HRSMR | Texas Instruments | IC MTR DRV MULTIPHAS 6-38V 32QFN | 86% | View |
| DRV8306HRSMT | Texas Instruments | IC MTR DRV MULTIPHAS 6-38V 32QFN | 86% | View |
Submit your RFQ for TC78B009FTG,EL and get a quote within 24 hours.
