Toshiba Semiconductor and Storage

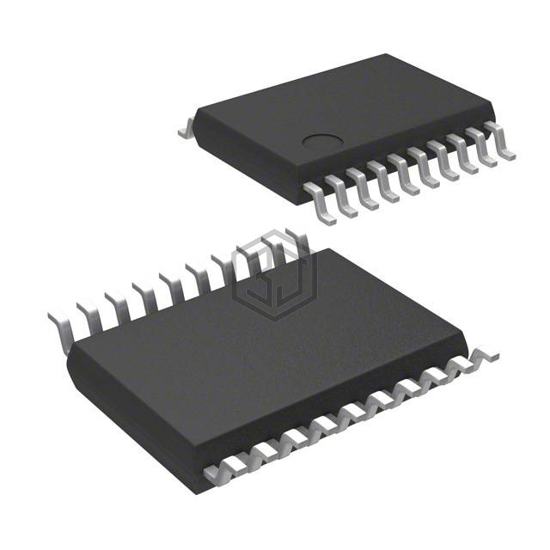

IC FF D-TYPE SNGL 8BIT 20VSSOP
TC74VHC574FK(EL,K) is a Logic - Flip Flops manufactured by Toshiba Semiconductor and Storage. IC FF D-TYPE SNGL 8BIT 20VSSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 2V ~ 5.5V, package / case 20-VFSOP (0.118", 3.00mm Width).
In Stock: 8,666
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Function | Standard |
| Type | D-Type |
| Output Type | Tri-State, Non-Inverted |
| Number of Elements | 1 |
| Number of Bits per Element | 8 |
| Clock Frequency | 115 MHz |
| Max Propagation Delay @ V, Max CL | 10.6ns @ 5V, 50pF |
| Trigger Type | Positive Edge |
| Current - Output High, Low | 8mA, 8mA |
| Voltage - Supply | 2V ~ 5.5V |
| Current - Quiescent (Iq) | 40 µA |
| Input Capacitance | 4 pF |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VSSOP |
| Package / Case | 20-VFSOP (0.118", 3.00mm Width) |
TC74VHC574FK(EL,K) is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MC74VHC574DTG | onsemi | IC FF D-TYPE SNGL 8BIT 20TSSOP | 91% | View |
| MC74VHC574DWR2G | onsemi | IC FF D-TYPE SNGL 8BIT 20SOIC | 91% | View |
| SN74AHC574NSR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SO | 90% | View |
| 74AHC574BQ,115 | Nexperia USA Inc. | IC FF D-TYPE SNGL 8BIT 20DHVQFN | 90% | View |
| SN74AHC574DWR | Texas Instruments | IC FF D-TYPE SNGL 8BIT 20SOIC | 90% | View |
| 74AHC574D,112 | NXP USA Inc. | IC FF D-TYPE SNGL 8BIT 20SO | 90% | View |
Submit your RFQ for TC74VHC574FK(EL,K) and get a quote within 24 hours.
