Toshiba Semiconductor and Storage
AEC-Q100 BIPOLAR STEPPER MOTOR D

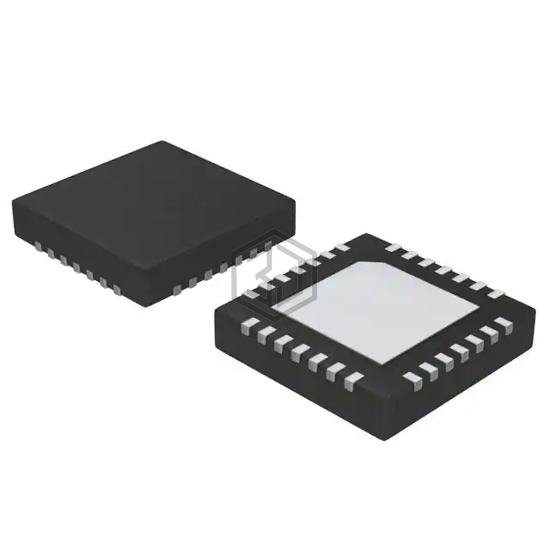

TB9120AFTG(EL) is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. AEC-Q100 BIPOLAR STEPPER MOTOR D. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -40°C ~ 125°C (TA), voltage - supply 4.5V ~ 7V, 7V ~ 18V, package / case 28-VQFN Exposed Pad.
In Stock: 1,994
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Pre-Driver - Half Bridge (4) |
| Interface | Parallel, PWM |
| Technology | NMOS, PMOS |
| Step Resolution | 1, 1/2, 1/8, 1/16, 1/32 |
| Applications | Automotive |
| Current - Output | 2.5A |
| Voltage - Supply | 4.5V ~ 7V, 7V ~ 18V |
| Voltage - Load | - |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Mounting Type | Surface Mount, Wettable Flank |
| Package / Case | 28-VQFN Exposed Pad |
| Supplier Device Package | 28-VQFN (6x6) |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MLX90412LLW-BAA-045-RE | Melexis Technologies NV | IC FAN DRIVER 40V 1.5A 10DFN | 87% | View |
| A5950KEUSR-J | Allegro MicroSystems | IC MOTOR DRIVER 5.5V-40V 16QFN | 85% | View |
| DRV8801AQRMJRQ1 | Texas Instruments | IC MTR DRV BIPOLAR 6.5-36V 16QFN | 85% | View |
| A89303KETSR-J | Allegro MicroSystems | THREE-PHASE SENSORLESS FAN DRIVE | 75% | View |
| MC33926AES | NXP USA Inc. | H-BRIDGE, BRUSHED DC MOTOR DRIVE | 60% | View |
| MC33926AESR2 | NXP USA Inc. | H-BRIDGE, BRUSHED DC MOTOR DRIVE | 60% | View |
Submit your RFQ for TB9120AFTG(EL) and get a quote within 24 hours.
