Toshiba Semiconductor and Storage
IC MOTOR DRIVER 10V-45V 16HSOP

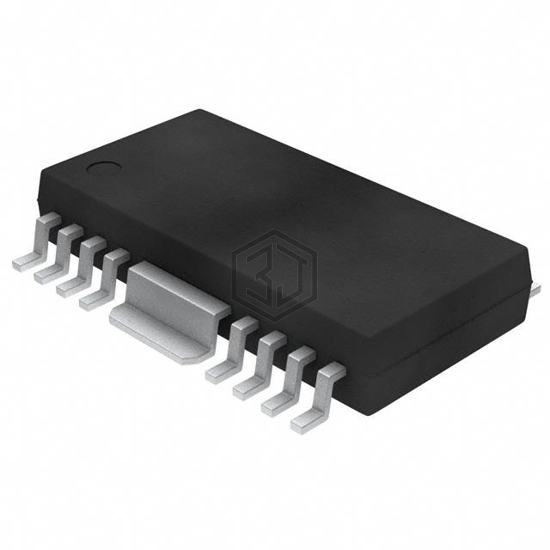

TB6569FG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-45V 16HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C (TA), voltage - supply 10V ~ 45V, package / case 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs.
In Stock: 7,722
| Attribute | Value |
|---|---|
| Product Status | Active |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | Parallel, PWM |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 10V ~ 45V |
| Voltage - Load | 10V ~ 45V |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 16-BSOP (0.252", 6.40mm Width) + 2 Heat Tabs |
| Supplier Device Package | 16-HSOP |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TB6641FG,8,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 10V-45V 16SOP | 100% | View |
| STSPIN820 | STMicroelectronics | IC MTR DRVR BIPLR 7-45V 24TFQFPN | 91% | View |
| DRV11873PWPR | Texas Instruments | IC MOTOR DRIVER 5V-16V 16HTSSOP | 83% | View |
| DRV8436PRGER | Texas Instruments | INDUSTRIAL STEPPER DRIVER | 80% | View |
| DRV8426ERGER | Texas Instruments | 35V, 1.5A BIPOLAR STEPPER OR DUA | 80% | View |
| DRV8426PPWPR | Texas Instruments | 35-V, 1.5-A BIPOLAR STEPPER OR D | 80% | View |
Submit your RFQ for TB6569FG,8,EL and get a quote within 24 hours.
