Toshiba Semiconductor and Storage
IC MOTOR DRIVER 10V-27V 25HZIP

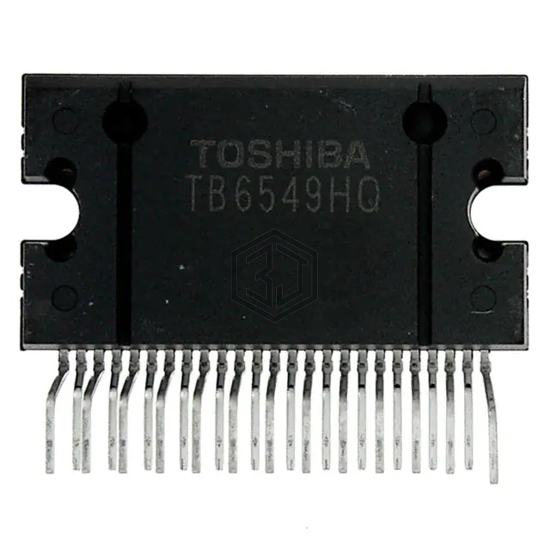

TB6549HQ(O) is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER 10V-27V 25HZIP. Key specifications: mounting type Through Hole, operating temperature -20°C ~ 85°C (TA), voltage - supply 10V ~ 27V, package / case 25-SSIP Formed Leads.
In Stock: 1,949
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | - |
| Motor Type - AC, DC | Brushed DC |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (2) |
| Interface | PWM, Serial |
| Technology | Bi-CMOS |
| Step Resolution | - |
| Applications | General Purpose |
| Current - Output | 4.5A |
| Voltage - Supply | 10V ~ 27V |
| Voltage - Load | 10V ~ 27V |
| Operating Temperature | -20°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 25-SSIP Formed Leads |
| Supplier Device Package | 25-HZIP |
TB6549HQ(O) is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TB67H302HG | Toshiba Semiconductor and Storage | IC MOTOR DRIVER 8V-42V 25HZIP | 92% | View |
| TB6600HG | Toshiba Semiconductor and Storage | IC MTR DRVR BIPOLAR 8-42V 25HZIP | 92% | View |
| LV8727-E | onsemi | IC MTR DRVR BIPOLAR 0V-5V 25HZIP | 91% | View |
| STA6940M | Sanken | IC MOTOR DRIVER 3V-5.5V 18ZIP | 74% | View |
| SIM6893M | Sanken | IPM - HIGH VOLTAGE 3 PHASE MOTOR | 62% | View |
| SIM6892M | Sanken | IPM - HIGH VOLTAGE 3 PHASE MOTOR | 62% | View |
Submit your RFQ for TB6549HQ(O) and get a quote within 24 hours.
