Toshiba Semiconductor and Storage

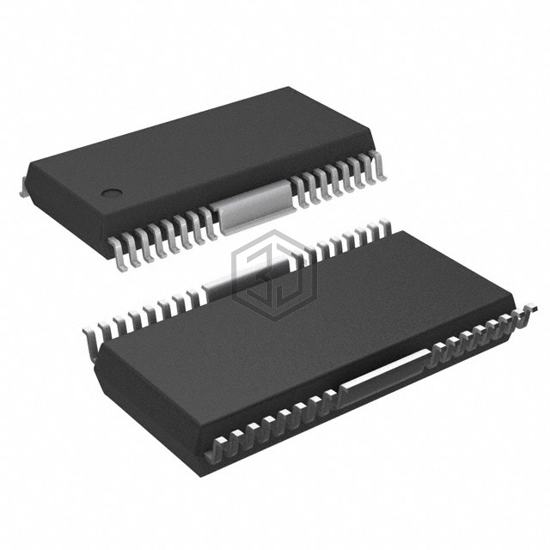

IC MOTOR DRIVER BIPOLAR 28HSOP
TB62215AFG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER BIPOLAR 28HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs.
In Stock: 3,756
| Attribute | Value |
|---|---|
| Product Status | Not For New Designs |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | Power MOSFET |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 3A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 38V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
TB62215AFG,8,EL is Not For New Designs. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TB67S101AFNG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 48HTSSOP | 100% | View |
| TB67S102AFTG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 48WQFN | 100% | View |
| TB67S109AFTG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 48WQFN | 100% | View |
| L6472HTR | STMicroelectronics | IC MTR DRV BIPLR 3.3/5V 28HTSSOP | 90% | View |
| L6470PDTR | STMicroelectronics | IC MTR DRV BIPLR 3.3V/5V 36PWRSO | 90% | View |
| DRV8828PWP | Texas Instruments | IC MTR DRVR BIPLR 8.2-45V 28SSOP | 87% | View |
Submit your RFQ for TB62215AFG,8,EL and get a quote within 24 hours.
