Toshiba Semiconductor and Storage

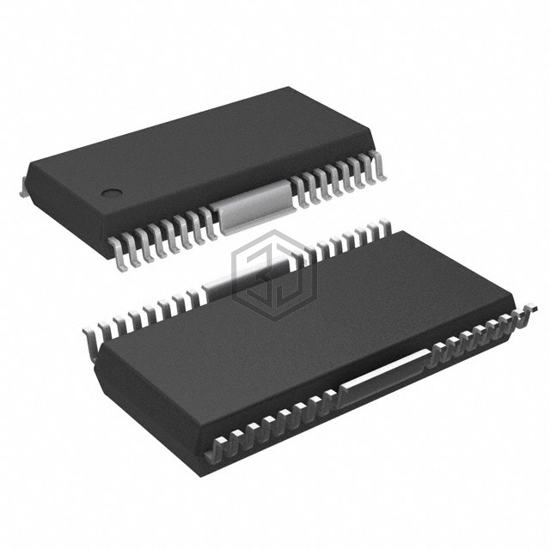

IC MOTOR DRIVER BIPOLAR 28HSOP
TB62214AFG,8,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MOTOR DRIVER BIPOLAR 28HSOP. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 150°C (TJ), voltage - supply 4.75V ~ 5.25V, package / case 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs.
In Stock: 7,254
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | 1, 1/2, 1/4 |
| Applications | General Purpose |
| Current - Output | 2A |
| Voltage - Supply | 4.75V ~ 5.25V |
| Voltage - Load | 10V ~ 38V |
| Operating Temperature | -20°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 28-BSOP (0.346", 8.80mm Width) + 2 Heat Tabs |
| Supplier Device Package | 28-HSOP |
TB62214AFG,8,EL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TB62218AFNG,C8,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 48HTSSOP | 100% | View |
| TB67S269FTG | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 48WQFN | 100% | View |
| TC78S122FNG,EL | Toshiba Semiconductor and Storage | IC MOTOR DRIVER BIPOLAR 48HTSSOP | 95% | View |
| LV8813G-AH | onsemi | IC MOTOR DRIVER 6V-16V 20TSSOP | 94% | View |
| A4986SLPTR-T | Allegro MicroSystems | IC MTR DRV BIPOLR 3-5.5V 24TSSOP | 88% | View |
| A3983SLPTR-T | Allegro MicroSystems | IC MTR DRV BIPOLR 3-5.5V 24TSSOP | 88% | View |
Submit your RFQ for TB62214AFG,8,EL and get a quote within 24 hours.
