Toshiba Semiconductor and Storage
IC MTR DRV BIPLR 4.5-5.5V 36HSOP

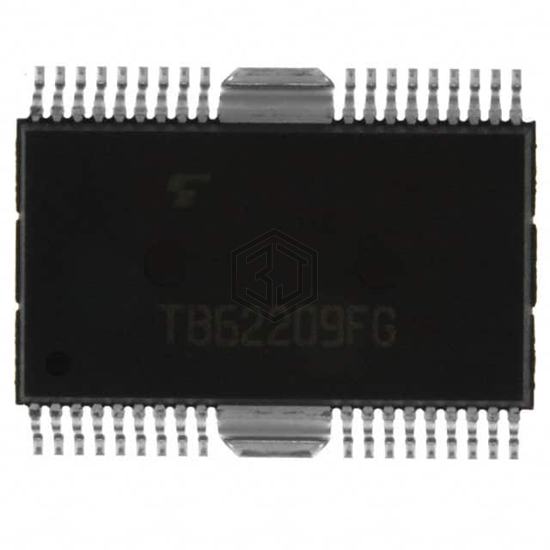

TB62209FG,EL is a PMIC - Motor Drivers, Controllers manufactured by Toshiba Semiconductor and Storage. IC MTR DRV BIPLR 4.5-5.5V 36HSOP. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 150°C (TJ), voltage - supply 4.5V ~ 5.5V, package / case 36-BSSOP (0.346", 8.80mm Width) + 2 Heat Tabs.
In Stock: 5,542
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Motor Type - Stepper | Bipolar |
| Motor Type - AC, DC | - |
| Function | Driver - Fully Integrated, Control and Power Stage |
| Output Configuration | Half Bridge (4) |
| Interface | Parallel |
| Technology | DMOS |
| Step Resolution | 1, 1/2, 1/4, 1/8, 1/16 |
| Applications | General Purpose |
| Current - Output | 1.5A |
| Voltage - Supply | 4.5V ~ 5.5V |
| Voltage - Load | 13V ~ 34V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 36-BSSOP (0.346", 8.80mm Width) + 2 Heat Tabs |
| Supplier Device Package | 36-HSOP |
TB62209FG,EL is Obsolete. Consider these compatible alternatives:
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TB62206FG,EL | Toshiba Semiconductor and Storage | IC MTR DRV BIPLR 4.5-5.5V 20HSOP | 100% | View |
| BD6722FS-E2 | Rohm Semiconductor | IC MOTOR DRIVER 4.5V-14V 16SSOPA | 100% | View |
| DRV8846RGET | Texas Instruments | IC MOTOR DRIVER PAR 24VQFN | 74% | View |
| DRV8833PWP | Texas Instruments | IC MOTOR DRIVER PAR 16HTSSOP | 63% | View |
| DRV8834PWP | Texas Instruments | IC MOTOR DRIVER BIPOLAR 24HTSSOP | 61% | View |
| MCP8063-E/MDVAO | Microchip Technology | IC MTR DRVR MULTIPHAS 2-14V 8DFN | 57% | View |
Submit your RFQ for TB62209FG,EL and get a quote within 24 hours.
