Toshiba Semiconductor and Storage
MOSFET N-CH 40V 12A 6UDFNB

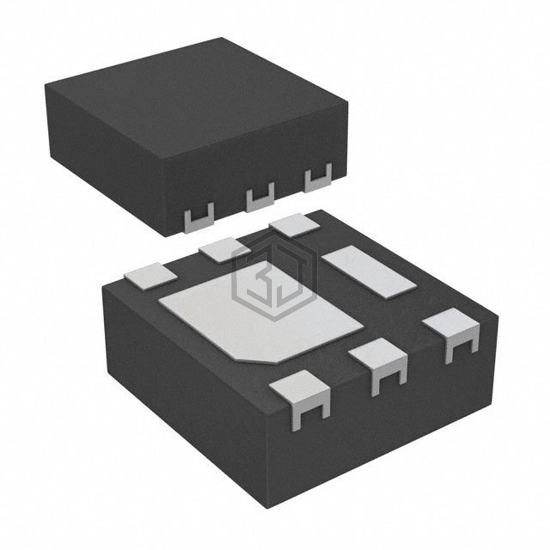

SSM6K514NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 40V 12A 6UDFNB. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-WDFN Exposed Pad.
In Stock: 14,510
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 11.6mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 7.5 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1110 pF @ 20 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-UDFNB (2x2) |
| Package / Case | 6-WDFN Exposed Pad |
Submit your RFQ for SSM6K514NU,LF and get a quote within 24 hours.
