Toshiba Semiconductor and Storage

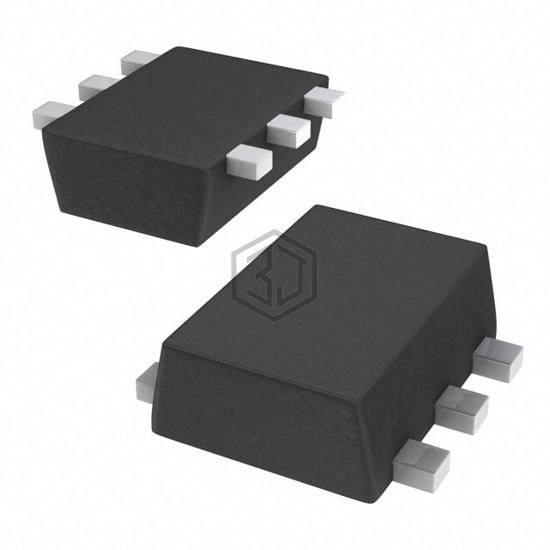

MOSFET N-CH 20V 2A UF6
SSM6K405TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 2A UF6. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD, Flat Leads.
In Stock: 2,760
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4V |
| Rds On (Max) @ Id, Vgs | 126mOhm @ 1A, 4V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3.4 nC @ 4 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 195 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UF6 |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for SSM6K405TU,LF and get a quote within 24 hours.
