Toshiba Semiconductor and Storage
MOSFET N-CH 20V 3.2A ES6

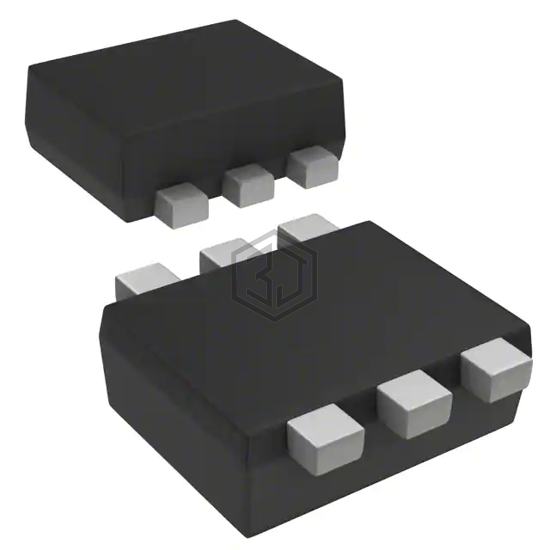

SSM6K211FE,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 3.2A ES6. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-563, SOT-666.
In Stock: 4,000
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 3.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 47mOhm @ 2A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 10.8 nC @ 4.5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 510 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | ES6 |
| Package / Case | SOT-563, SOT-666 |
Submit your RFQ for SSM6K211FE,LF and get a quote within 24 hours.
