Toshiba Semiconductor and Storage
MOSFET P-CH 20V 5A 6WCSP

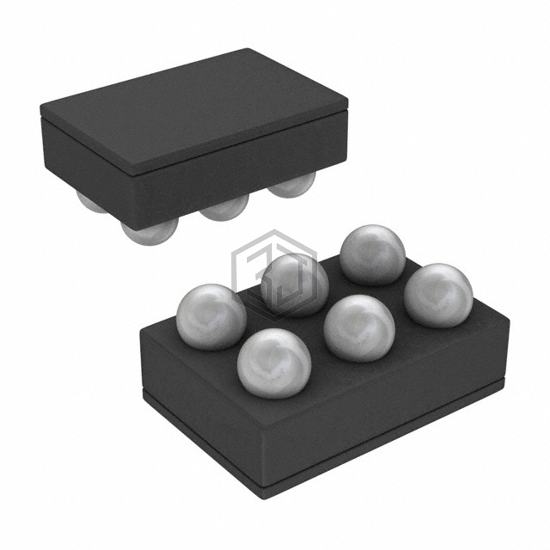

SSM6J771G,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 5A 6WCSP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-UFBGA, WLCSP.
In Stock: 2
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 8.5V |
| Rds On (Max) @ Id, Vgs | 31mOhm @ 3A, 8.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 9.8 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 870 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.2W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Package / Case | 6-UFBGA, WLCSP |
Submit your RFQ for SSM6J771G,LF and get a quote within 24 hours.
