Toshiba Semiconductor and Storage
MOSFET P-CH 12V 10A 6UDFNB

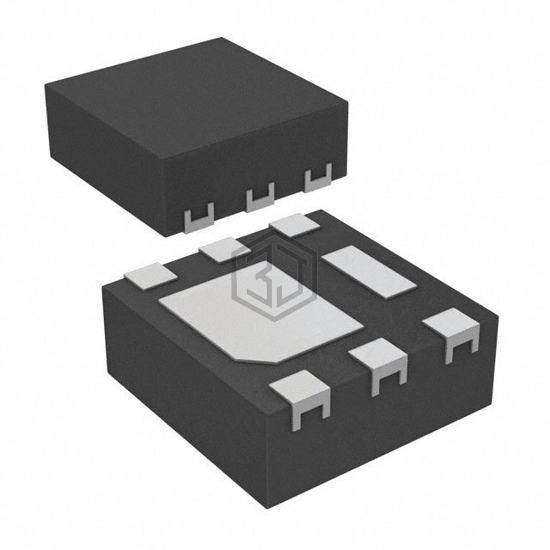

SSM6J512NU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 12V 10A 6UDFNB. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-WDFN Exposed Pad.
In Stock: 25,218
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 12 V |
| Current - Continuous Drain (Id) @ 25°C | 10A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 8V |
| Rds On (Max) @ Id, Vgs | 16.2mOhm @ 4A, 8V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 19.5 nC @ 4.5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1400 pF @ 6 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.25W (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 6-UDFNB (2x2) |
| Package / Case | 6-WDFN Exposed Pad |
Submit your RFQ for SSM6J512NU,LF and get a quote within 24 hours.
