Toshiba Semiconductor and Storage
MOSFET P-CH 20V 2.5A UF6

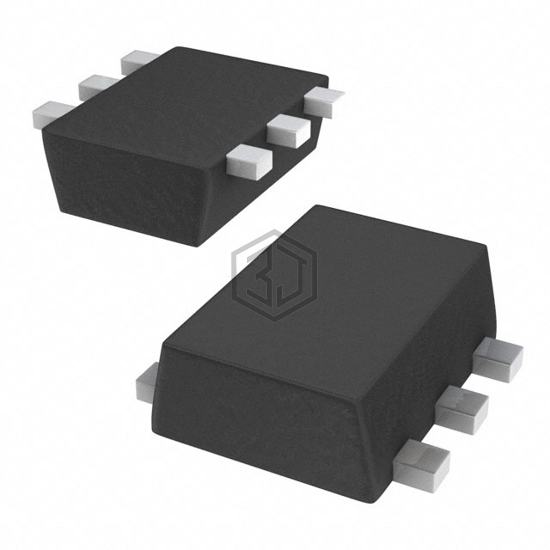

SSM6J50TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 2.5A UF6. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD, Flat Leads.
In Stock: 3,451
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2V, 4.5V |
| Rds On (Max) @ Id, Vgs | 64mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1.2V @ 200µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 800 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UF6 |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for SSM6J50TU,LF and get a quote within 24 hours.
