Toshiba Semiconductor and Storage
MOSFET P-CH 20V 4A UF6

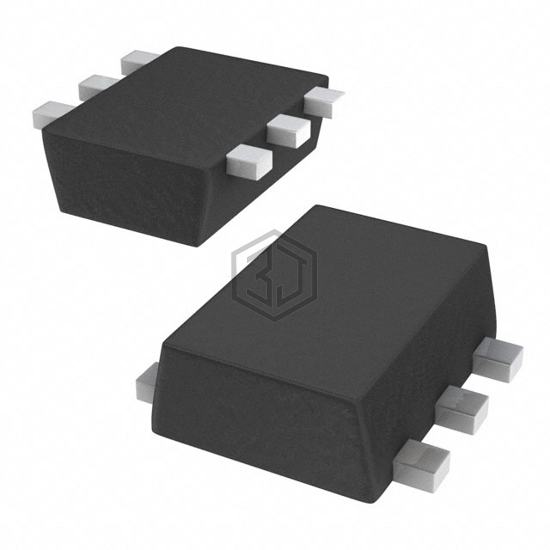

SSM6J422TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 4A UF6. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD, Flat Leads.
In Stock: 6,807
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 4A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 42.7mOhm @ 3A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 12.8 nC @ 4.5 V |
| Vgs (Max) | +6V, -8V |
| Input Capacitance (Ciss) (Max) @ Vds | 840 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1W (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UF6 |
| Package / Case | 6-SMD, Flat Leads |
Submit your RFQ for SSM6J422TU,LF and get a quote within 24 hours.
