Toshiba Semiconductor and Storage
MOSFET N-CH 20V 1.5A UFV

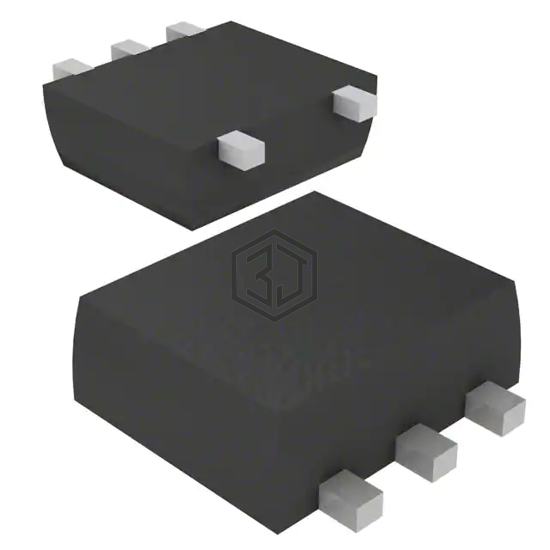

SSM5H08TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 20V 1.5A UFV. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 6-SMD (5 Leads), Flat Lead.
In Stock: 5,971
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Rds On (Max) @ Id, Vgs | 160mOhm @ 750mA, 4V |
| Vgs(th) (Max) @ Id | 1.1V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 125 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFV |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
