Toshiba Semiconductor and Storage
MOSFET P-CH 20V 1.5A UFV

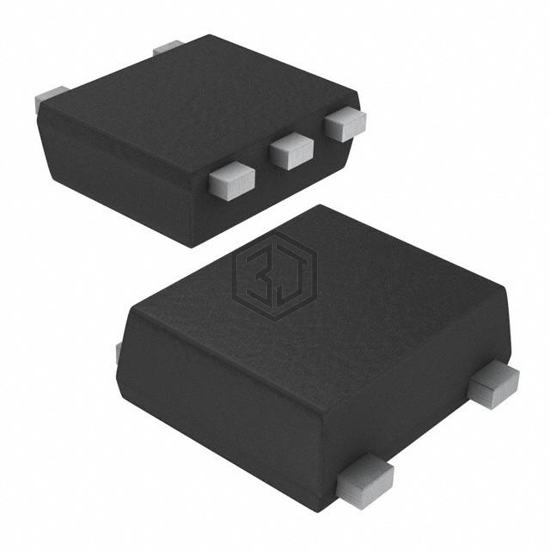

SSM5G10TU(TE85L,F) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 1.5A UFV. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 6-SMD (5 Leads), Flat Lead.
In Stock: 40
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 1.5A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 4V |
| Rds On (Max) @ Id, Vgs | 213mOhm @ 1A, 4V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 6.4 nC @ 4 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 250 pF @ 10 V |
| FET Feature | Schottky Diode (Isolated) |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFV |
| Package / Case | 6-SMD (5 Leads), Flat Lead |
Submit your RFQ for SSM5G10TU(TE85L,F) and get a quote within 24 hours.
