Toshiba Semiconductor and Storage
MOSFET N-CH 60V 6A UFM

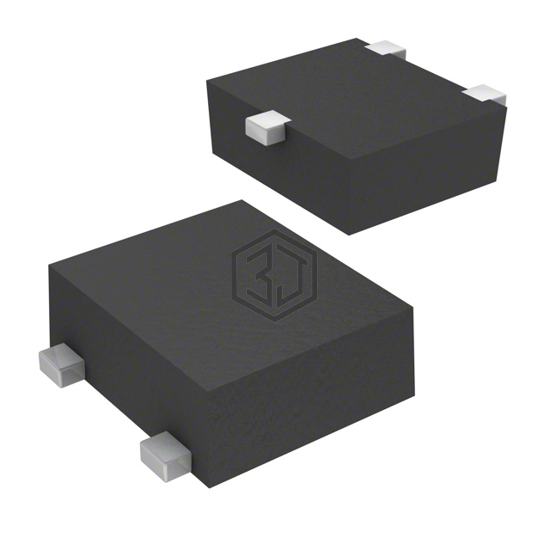

SSM3K341TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 60V 6A UFM. Key specifications: mounting type Surface Mount, operating temperature 175°C, package / case 3-SMD, Flat Lead.
In Stock: 1,409
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 6A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 36mOhm @ 4A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 550 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 1.8W (Ta) |
| Operating Temperature | 175°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFM |
| Package / Case | 3-SMD, Flat Lead |
Submit your RFQ for SSM3K341TU,LF and get a quote within 24 hours.
