Toshiba Semiconductor and Storage
MOSFET N-CH 30V 100MA VESM

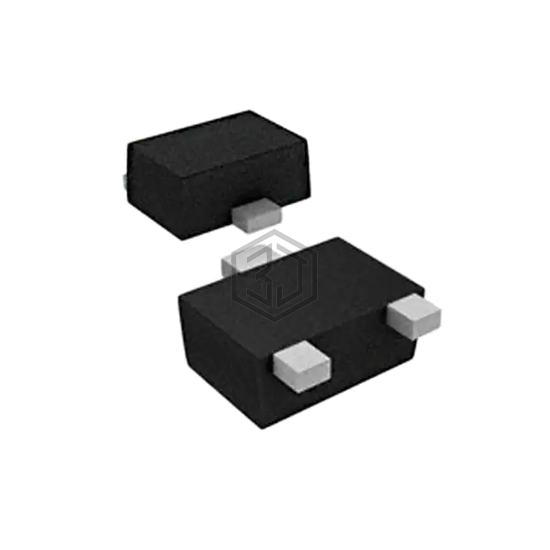

SSM3K15AMFV,L3F is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 100MA VESM. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-723.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4V |
| Rds On (Max) @ Id, Vgs | 3.6Ohm @ 10mA, 4V |
| Vgs(th) (Max) @ Id | 1.5V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 13.5 pF @ 3 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | VESM |
| Package / Case | SOT-723 |
Submit your RFQ for SSM3K15AMFV,L3F and get a quote within 24 hours.
