Toshiba Semiconductor and Storage
MOSFET N-CH 30V 2.2A UFM

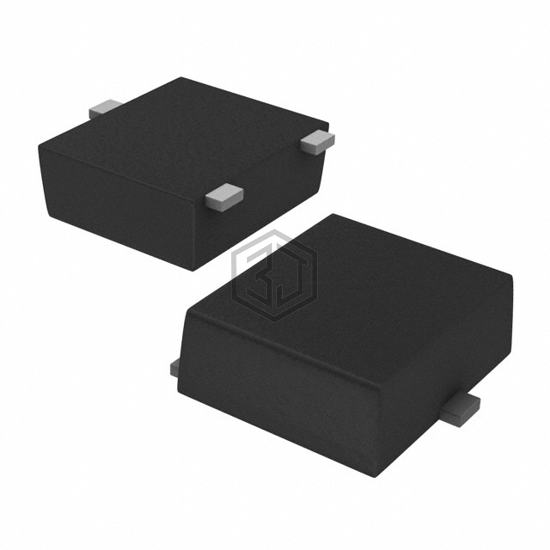

SSM3K116TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 30V 2.2A UFM. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case 3-SMD, Flat Leads.
In Stock: 55,763
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2.2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 100mOhm @ 500mA, 4.5V |
| Vgs(th) (Max) @ Id | 1.1V @ 100µA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 245 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFM |
| Package / Case | 3-SMD, Flat Leads |
Submit your RFQ for SSM3K116TU,LF and get a quote within 24 hours.
