Toshiba Semiconductor and Storage
MOSFET P-CH 20V 2A CST3B

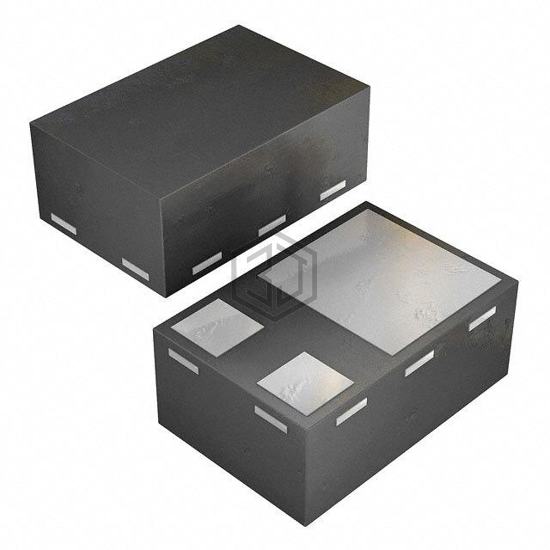

SSM3J46CTB(TPL3) is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 2A CST3B. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 3-SMD, No Lead.
In Stock: 2,798
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 103mOhm @ 1.5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 4.7 nC @ 4.5 V |
| Vgs (Max) | ±8V |
| Input Capacitance (Ciss) (Max) @ Vds | 290 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | - |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | CST3B |
| Package / Case | 3-SMD, No Lead |
Submit your RFQ for SSM3J46CTB(TPL3) and get a quote within 24 hours.
