Toshiba Semiconductor and Storage
MOSFET P-CH 20V 100MA VESM

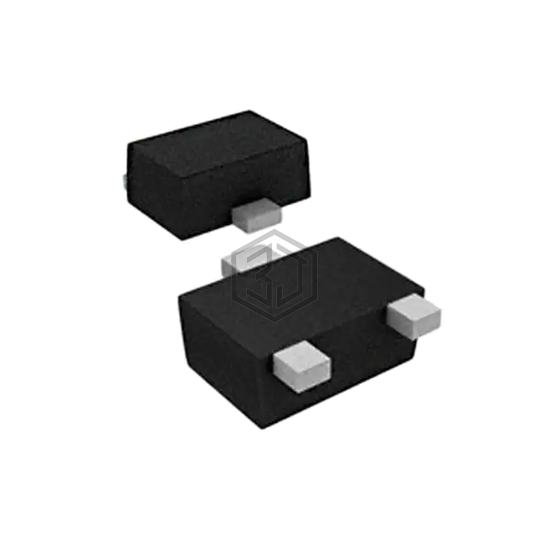

SSM3J35MFV,L3F is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CH 20V 100MA VESM. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case SOT-723.
In Stock: 35,585
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 100mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | - |
| Rds On (Max) @ Id, Vgs | 8Ohm @ 50mA, 4V |
| Vgs(th) (Max) @ Id | - |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | - |
| Input Capacitance (Ciss) (Max) @ Vds | 12.2 pF @ 3 V |
| FET Feature | - |
| Power Dissipation (Max) | 150mW (Ta) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | VESM |
| Package / Case | SOT-723 |
Submit your RFQ for SSM3J35MFV,L3F and get a quote within 24 hours.
