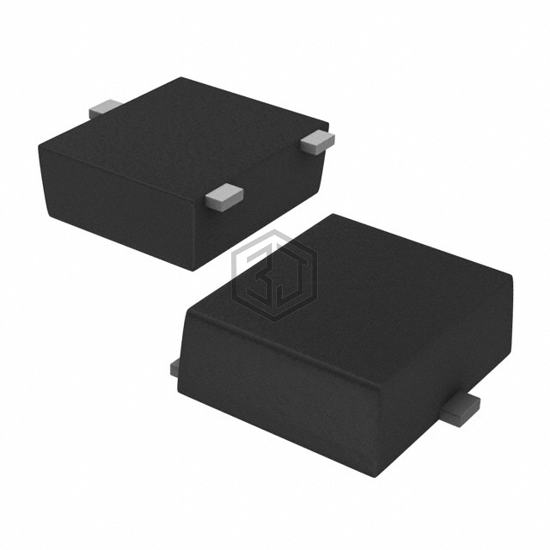

Toshiba Semiconductor and Storage
MOSFET P-CHANNEL 30V 2A UFM
SSM3J117TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET P-CHANNEL 30V 2A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 3-SMD, Flat Leads.
In Stock: 1,552
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 117mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 2.6V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | - |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 280 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 500mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFM |
| Package / Case | 3-SMD, Flat Leads |
