Toshiba Semiconductor and Storage
MOSFET N-CH 34V 2A UFM

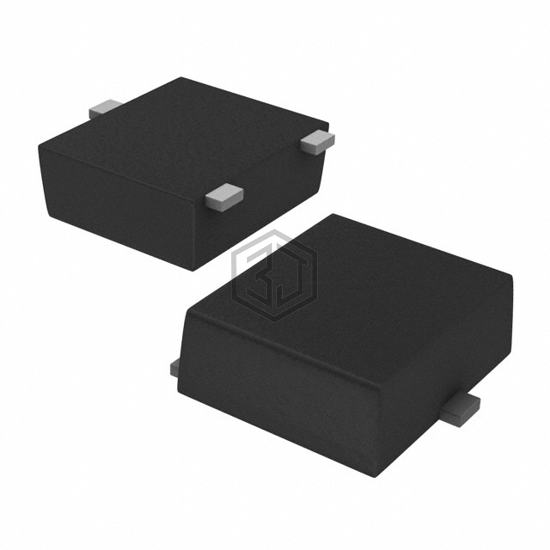

SSM3H137TU,LF is a Transistors - FETs, MOSFETs - Single manufactured by Toshiba Semiconductor and Storage. MOSFET N-CH 34V 2A UFM. Key specifications: mounting type Surface Mount, operating temperature 150°C, package / case 3-SMD, Flat Leads.
In Stock: 2,448
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 34 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4V, 10V |
| Rds On (Max) @ Id, Vgs | 240mOhm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 1.7V @ 1mA |
| Gate Charge (Qg) (Max) @ Vgs | 3 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 119 pF @ 10 V |
| FET Feature | - |
| Power Dissipation (Max) | 800mW (Ta) |
| Operating Temperature | 150°C |
| Mounting Type | Surface Mount |
| Supplier Device Package | UFM |
| Package / Case | 3-SMD, Flat Leads |
Submit your RFQ for SSM3H137TU,LF and get a quote within 24 hours.
