Toshiba Semiconductor and Storage
PNP + NPN BRT Q1BSR=22KOHM Q1BER

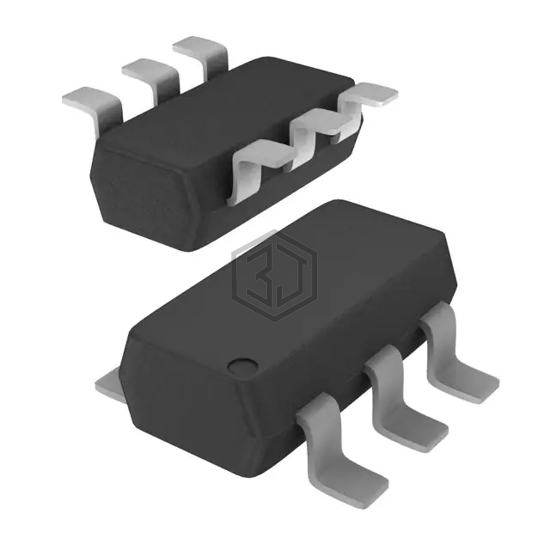

RN46A1(TE85L,F) is a Transistors - Bipolar (BJT) - Arrays, Pre-Biased manufactured by Toshiba Semiconductor and Storage. PNP + NPN BRT Q1BSR=22KOHM Q1BER. Key specifications: mounting type Surface Mount, package / case SC-74, SOT-457, current - collector (ic) (max) 100mA, power - max 300mW.
In Stock: 7,647
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Transistor Type | 1 NPN, 1 PNP - Pre-Biased (Dual) |
| Current - Collector (Ic) (Max) | 100mA |
| Voltage - Collector Emitter Breakdown (Max) | 50V |
| Resistor - Base (R1) | 22kOhms, 10kOhms |
| Resistor - Emitter Base (R2) | 22kOhms, 10kOhms |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 70 @ 10mA, 5V / 50 @ 10mA, 5V |
| Vce Saturation (Max) @ Ib, Ic | 300mV @ 250µA, 5mA |
| Current - Collector Cutoff (Max) | 500nA |
| Frequency - Transition | 200MHz, 250MHz |
| Power - Max | 300mW |
| Mounting Type | Surface Mount |
| Package / Case | SC-74, SOT-457 |
| Supplier Device Package | SM6 |
Submit your RFQ for RN46A1(TE85L,F) and get a quote within 24 hours.
