STEP-UP & STEP-DOWN 300KHZ DCDC

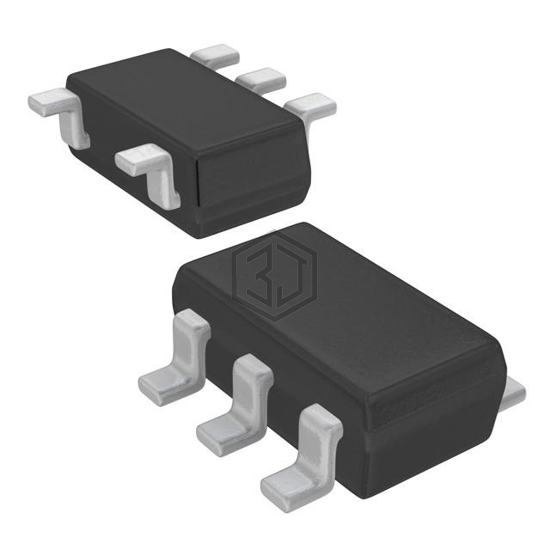

XC9302A563MR-G is a PMIC - Voltage Regulators - DC DC Switching Controllers manufactured by Torex Semiconductor Ltd. STEP-UP & STEP-DOWN 300KHZ DCDC. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, voltage - supply (vcc/vdd) 2V ~ 10V, package / case SC-74A, SOT-753.
In Stock: 8,737
| Attribute | Value |
|---|---|
| Product Status | Active |
| Output Type | PWM |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive |
| Topology | Buck-Boost |
| Number of Outputs | 1 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 2V ~ 10V |
| Frequency - Switching | 300kHz |
| Duty Cycle (Max) | 92% |
| Synchronous Rectifier | No |
| Clock Sync | No |
| Serial Interfaces | - |
| Control Features | Enable |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-25-5 |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| XC9301A363MR-G | Torex Semiconductor Ltd | STEP-UP & STEP-DOWN 300KHZ DCDC | 100% | View |
| XC9301A393MR-G | Torex Semiconductor Ltd | STEP-UP & STEP-DOWN 300KHZ DCDC | 100% | View |
| XC9302A603MR-G | Torex Semiconductor Ltd | STEP-UP & STEP-DOWN 300KHZ DCDC | 100% | View |
| XC9301A493MR-G | Torex Semiconductor Ltd | STEP-UP & STEP-DOWN 300KHZ DCDC | 100% | View |
| XC9302A233MR-G | Torex Semiconductor Ltd | STEP-UP & STEP-DOWN 300KHZ DCDC | 100% | View |
| XC9302A333MR-G | Torex Semiconductor Ltd | STEP-UP & STEP-DOWN 300KHZ DCDC | 100% | View |
Submit your RFQ for XC9302A563MR-G and get a quote within 24 hours.
