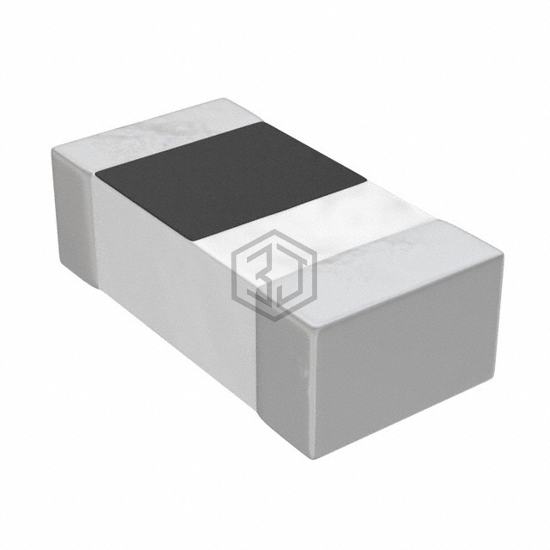

FIXED IND 15NH 200MA 2 OHM SMD
PTL1608-F15NT is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 15NH 200MA 2 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case 0603 (1608 Metric), current rating (amps) 200 mA.
In Stock: 2,096
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Thick Film |
| Material - Core | Ceramic |
| Inductance | 15 nH |
| Tolerance | ±3% |
| Current Rating (Amps) | 200 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 2Ohm Max |
| Q @ Freq | 7 @ 100MHz |
| Frequency - Self Resonant | 2.65GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Supplier Device Package | 0603 (1608 Metric) |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
Submit your RFQ for PTL1608-F15NT and get a quote within 24 hours.
