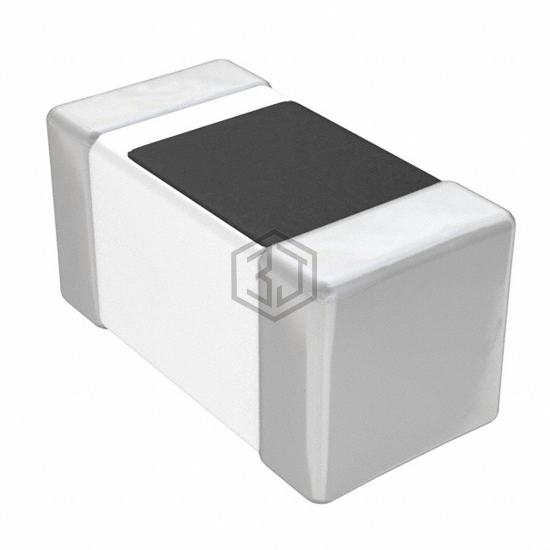

FIXED IND 10NH 300MA 460MOHM SMD
LL1005-FH10NK=P3 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 10NH 300MA 460MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C, package / case 0402 (1005 Metric), current rating (amps) 300 mA.
In Stock: 13,130
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Multilayer |
| Material - Core | Ceramic |
| Inductance | 10 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 300 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 460mOhm Max |
| Q @ Freq | 12 @ 100MHz |
| Frequency - Self Resonant | 3.75GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 100°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 (1005 Metric) |
| Size / Dimension | 0.039" L x 0.020" W (1.00mm x 0.50mm) |
| Height - Seated (Max) | 0.024" (0.60mm) |
