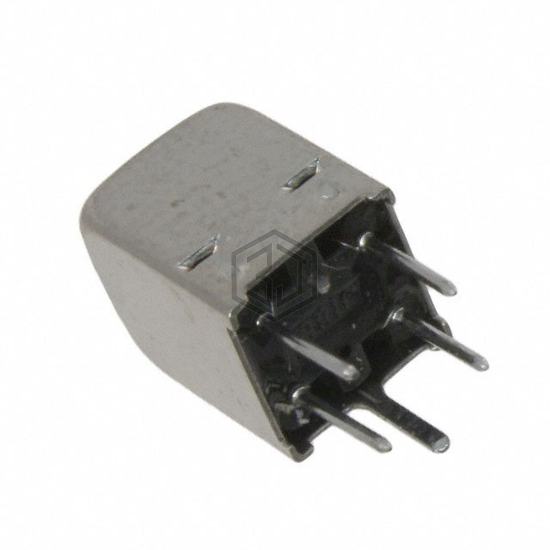

FILTER LC 700UH/4PF-750PF TH
H286BAIS-4963DAD is a EMI/RFI Filters (LC, RC Networks) manufactured by Toko America Inc.. FILTER LC 700UH/4PF-750PF TH. Key specifications: mounting type Through Hole, package / case Through Hole - Vertical, size / dimension 0.240" L x 0.240" W (6.10mm x 6.10mm).
In Stock: 722
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Band Pass |
| Filter Order | 3rd |
| Technology | LC |
| Number of Channels | 1 |
| Center / Cutoff Frequency | 4.43MHz (Center) |
| Attenuation Value | 3dB @ 3.73MHz ~ 5.13MHz |
| Resistance - Channel (Ohms) | - |
| Current | - |
| Values | L = 700µH, C = 4pF ~ 750pF |
| ESD Protection | No |
| Operating Temperature | - |
| Applications | Data Lines for Mobile Devices |
| Voltage - Rated | - |
| Mounting Type | Through Hole |
| Package / Case | Through Hole - Vertical |
| Size / Dimension | 0.240" L x 0.240" W (6.10mm x 6.10mm) |
| Height | 0.315" (8.00mm) |
