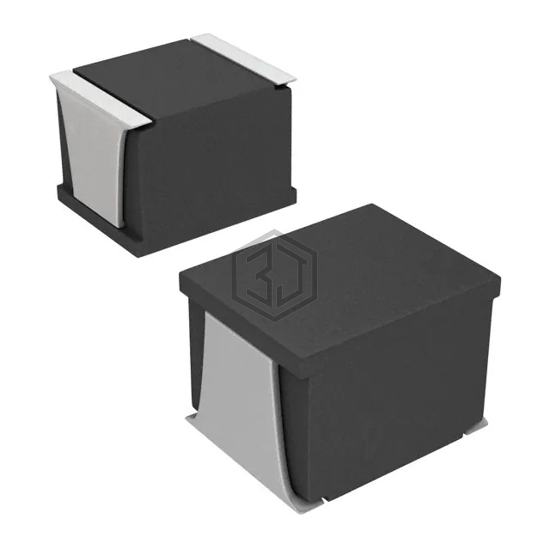

FIXED IND 18UH 135MA 3.3 OHM SMD
FSLU2520-180JP2 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 18UH 135MA 3.3 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 135 mA.
In Stock: 557
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | Ferrite |
| Inductance | 18 µH |
| Tolerance | ±5% |
| Current Rating (Amps) | 135 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.3Ohm Max |
| Q @ Freq | 25 @ 2.52MHz |
| Frequency - Self Resonant | 24MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 2.52 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for FSLU2520-180JP2 and get a quote within 24 hours.
