FIXED IND 12NH 690MA 170MOHM SMD

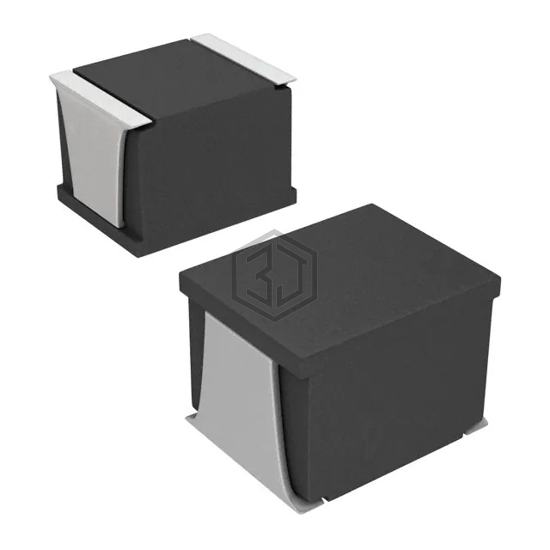

FSLU2520-12NKP2 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 12NH 690MA 170MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 690 mA.
In Stock: 3,536
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 12 nH |
| Tolerance | ±10% |
| Current Rating (Amps) | 690 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 170mOhm Max |
| Q @ Freq | 15 @ 100MHz |
| Frequency - Self Resonant | 2.1GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Height - Seated (Max) | 0.071" (1.80mm) |
Submit your RFQ for FSLU2520-12NKP2 and get a quote within 24 hours.
