FIXED IND 180NH 460MA 290 MOHM

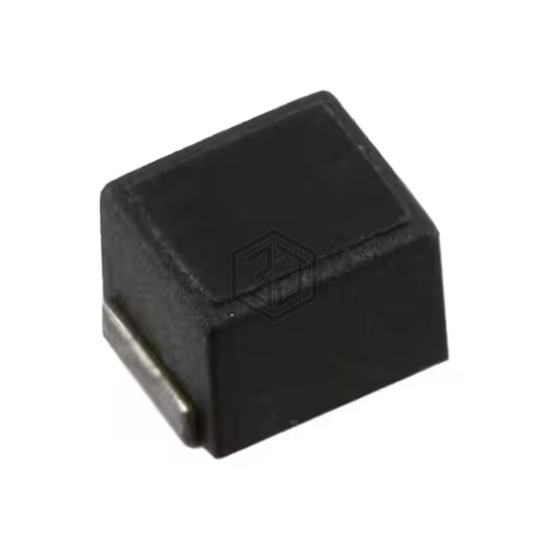

FSLM2520-R18J=P2 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 180NH 460MA 290 MOHM. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 1008 (2520 Metric), current rating (amps) 460 mA.
In Stock: 1,183
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 180 nH |
| Tolerance | ±5% |
| Current Rating (Amps) | 460 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | 30 @ 25.2MHz |
| Frequency - Self Resonant | 520MHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1008 (2520 Metric) |
| Supplier Device Package | 1008 (2520 Metric) |
| Size / Dimension | 0.106" L x 0.087" W (2.70mm x 2.20mm) |
| Height - Seated (Max) | 0.067" (1.70mm) |
Submit your RFQ for FSLM2520-R18J=P2 and get a quote within 24 hours.
