FIXED IND 390UH 490MA 1.09OHM SM

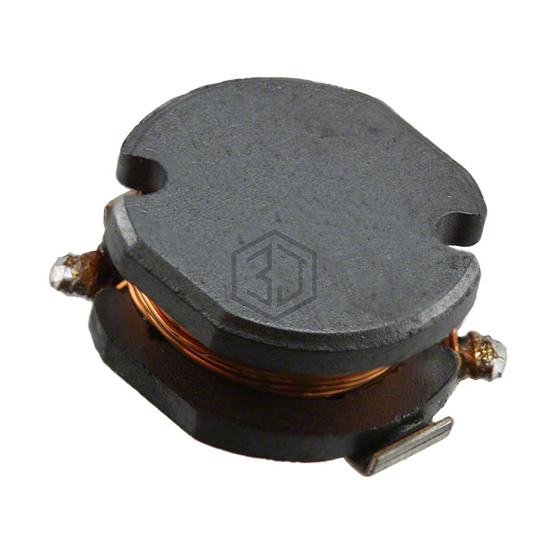

A814AY-391K=P3 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 390UH 490MA 1.09OHM SM. Key specifications: mounting type Surface Mount, package / case Nonstandard, current rating (amps) 490 mA, size / dimension 0.445" L x 0.382" W (11.30mm x 9.70mm).
In Stock: 1,101
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 390 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 490 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 1.09Ohm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | - |
| Ratings | - |
| Operating Temperature | - |
| Inductance Frequency - Test | 100 kHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | Nonstandard |
| Supplier Device Package | - |
| Size / Dimension | 0.445" L x 0.382" W (11.30mm x 9.70mm) |
| Height - Seated (Max) | 0.197" (5.00mm) |
Submit your RFQ for A814AY-391K=P3 and get a quote within 24 hours.
