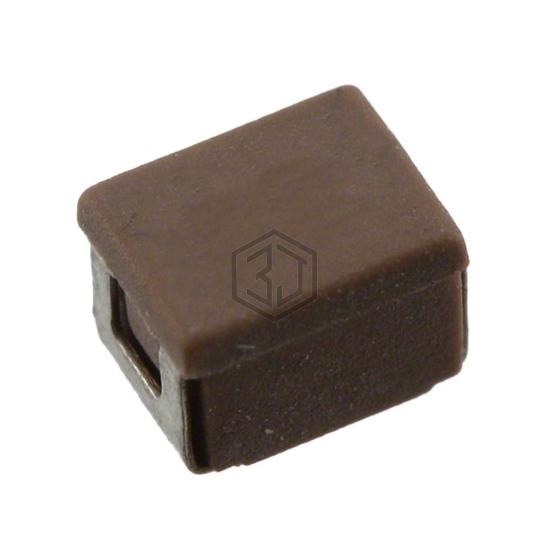

FIXED IND 68NH 320MA 290MOHM SMD
380NB-68NM=P2 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 68NH 320MA 290MOHM SMD. Key specifications: mounting type Surface Mount, operating temperature -25°C ~ 85°C, package / case 1210 (3225 Metric), current rating (amps) 320 mA.
In Stock: 15,135
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | - |
| Material - Core | Ferrite |
| Inductance | 68 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 320 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 290mOhm Max |
| Q @ Freq | 26 @ 100MHz |
| Frequency - Self Resonant | 550MHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 85°C |
| Inductance Frequency - Test | 100 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1210 (3225 Metric) |
| Supplier Device Package | - |
| Size / Dimension | 0.134" L x 0.106" W (3.40mm x 2.70mm) |
| Height - Seated (Max) | 0.094" (2.40mm) |
Submit your RFQ for 380NB-68NM=P2 and get a quote within 24 hours.
