FIXED IND 82UH 75MA 4.42 OHM SMD

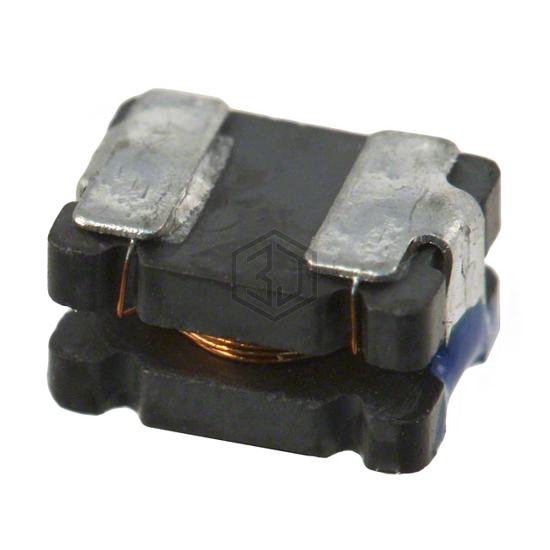

300LS-820K=P2 is a Fixed Inductors manufactured by Toko America Inc.. FIXED IND 82UH 75MA 4.42 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -10°C ~ 60°C, package / case 1812 (4532 Metric), current rating (amps) 75 mA.
In Stock: 703
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Drum Core, Wirewound |
| Material - Core | Ferrite |
| Inductance | 82 µH |
| Tolerance | ±10% |
| Current Rating (Amps) | 75 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 4.42Ohm Max |
| Q @ Freq | 50 @ 25.2MHz |
| Frequency - Self Resonant | 7.7MHz |
| Ratings | - |
| Operating Temperature | -10°C ~ 60°C |
| Inductance Frequency - Test | 25.2 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1812 (4532 Metric) |
| Supplier Device Package | 1812 |
| Size / Dimension | 0.177" L x 0.126" W (4.50mm x 3.20mm) |
| Height - Seated (Max) | 0.126" (3.20mm) |
Submit your RFQ for 300LS-820K=P2 and get a quote within 24 hours.
