AC-DC SWITCHING POWER SUPPLY, OP

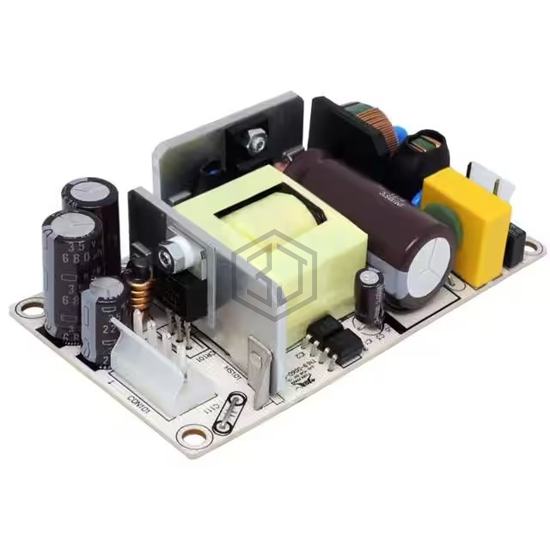

TN19-0060-12 is a AC DC Converters manufactured by Tiger Power. AC-DC SWITCHING POWER SUPPLY, OP. Key specifications: mounting type Chassis Mount, operating temperature -20°C ~ 70°C, voltage - input 90 ~ 264 VAC, size / dimension 2.00" L x 4.00" W x 1.06" H (50.8mm x 101.6mm x 26.9mm).
In Stock: 60
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Open Frame |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 264 VAC |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Voltage - Output 5 | - |
| Voltage - Output 6 | - |
| Current - Output 1 | - |
| Current - Output 2 | - |
| Current - Output 3 | - |
| Current - Output 4 | - |
| Current - Output 5 | - |
| Current - Output 6 | - |
| Power (Watts) | 60W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | - |
| Efficiency | 87% |
| Operating Temperature | -20°C ~ 70°C |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 2.00" L x 4.00" W x 1.06" H (50.8mm x 101.6mm x 26.9mm) |
| Approval Agency | CB, cURus, TUV, UL |
| Standard Number | 62368-1 |
