LED DRIVR CC AC/DC 53-107V 700MA

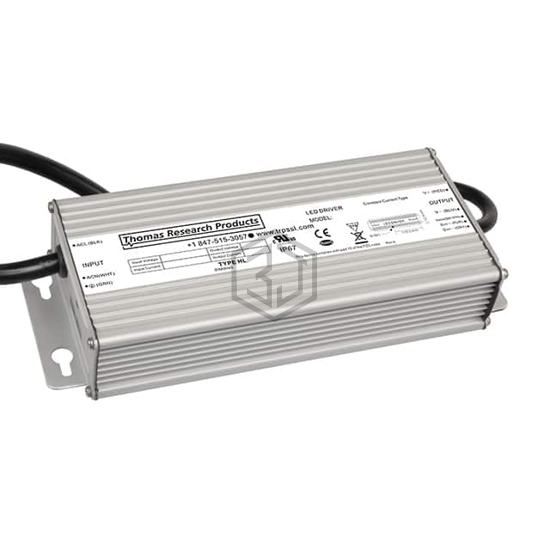

TSC-075S070DT is a LED Drivers manufactured by Thomas Research Products. LED DRIVR CC AC/DC 53-107V 700MA. Key specifications: voltage - output 53 ~ 107V, current - output (max) 700mA, size / dimension 8.74" L x 3.50" W x 1.50" H (222.0mm x 89.0mm x 38.1mm), termination style Wire Leads.
In Stock: 47
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 249VAC |
| Voltage - Input (Max) | 528VAC |
| Voltage - Output | 53 ~ 107V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 75 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OTP, OVP, SCP |
| Ratings | IP67 |
| Operating Temperature | - |
| Efficiency | 86% |
| Termination Style | Wire Leads |
| Size / Dimension | 8.74" L x 3.50" W x 1.50" H (222.0mm x 89.0mm x 38.1mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for TSC-075S070DT and get a quote within 24 hours.
