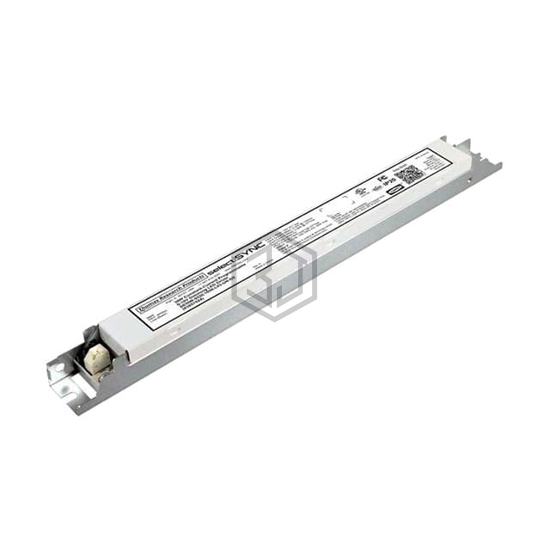

S030W-052C1050-L03-UN-D2 (30WLG)
S030W-052C1050-L03-UN-D2 is a LED Drivers manufactured by Thomas Research Products. S030W-052C1050-L03-UN-D2 (30WLG). Key specifications: operating temperature -30°C ~ 85°C, voltage - output 20 ~ 52V, current - output (max) 1.05A, size / dimension 13.19" L x 1.17" W x 1.03" H (335.0mm x 31.0mm x 28.0mm).
In Stock: 144
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 120VAC |
| Voltage - Input (Max) | 277VAC |
| Voltage - Output | 20 ~ 52V |
| Current - Output (Max) | 1.05A |
| Power (Watts) | 30 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OTP, OVP, SCP |
| Ratings | IP20 |
| Operating Temperature | -30°C ~ 85°C |
| Efficiency | 85% |
| Termination Style | Terminal Block |
| Size / Dimension | 13.19" L x 1.17" W x 1.03" H (335.0mm x 31.0mm x 28.0mm) |
| Approval Agency | CE, cULus, EN |
| Standard Number | 8750 |
Submit your RFQ for S030W-052C1050-L03-UN-D2 and get a quote within 24 hours.
