LED DRIVR CC AC/DC 72-214V 700MA

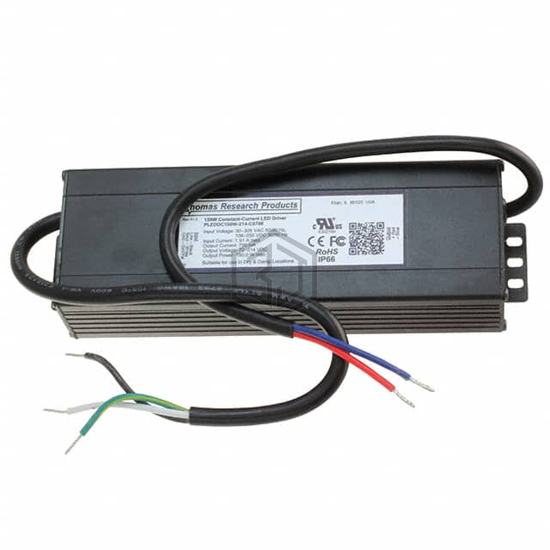

PLEDDC150W-214-C0700 is a LED Drivers manufactured by Thomas Research Products. LED DRIVR CC AC/DC 72-214V 700MA. Key specifications: voltage - output 72 ~ 214V, current - output (max) 700mA, size / dimension 6.81" L x 2.33" W x 1.47" H (173.0mm x 59.2mm x 37.3mm), termination style Wire Leads.
In Stock: 401
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 72 ~ 214V |
| Current - Output (Max) | 700mA |
| Power (Watts) | 150 W |
| Voltage - Isolation | - |
| Dimming | - |
| Features | OCP, OVP, SCP |
| Ratings | IP66 |
| Operating Temperature | - |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 6.81" L x 2.33" W x 1.47" H (173.0mm x 59.2mm x 37.3mm) |
| Approval Agency | CE, cURus |
| Standard Number | - |
Submit your RFQ for PLEDDC150W-214-C0700 and get a quote within 24 hours.
