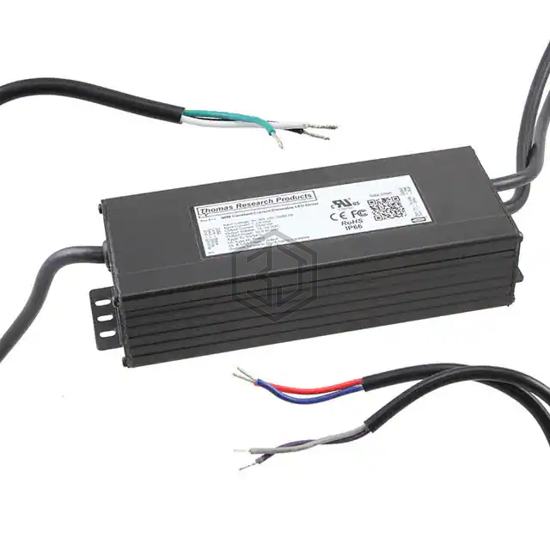

LED DRIVER CC AC/DC 23-69V 1.4A
PLED96W-069-C1400-D is a LED Drivers manufactured by Thomas Research Products. LED DRIVER CC AC/DC 23-69V 1.4A. Key specifications: operating temperature -30°C ~ 65°C, voltage - output 23 ~ 69V, current - output (max) 1.4A, size / dimension 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm).
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Constant Current |
| Topology | AC DC Converter |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 90VAC |
| Voltage - Input (Max) | 305VAC |
| Voltage - Output | 23 ~ 69V |
| Current - Output (Max) | 1.4A |
| Power (Watts) | 96 W |
| Voltage - Isolation | - |
| Dimming | Analog |
| Features | OCP, OVP, SCP |
| Ratings | IP66, NEMA 6 |
| Operating Temperature | -30°C ~ 65°C |
| Efficiency | 91% |
| Termination Style | Wire Leads |
| Size / Dimension | 5.98" L x 2.31" W x 1.46" H (152.0mm x 58.8mm x 37.0mm) |
| Approval Agency | CE, cULus |
| Standard Number | - |
Submit your RFQ for PLED96W-069-C1400-D and get a quote within 24 hours.
